• Easy to Drive: The main rod is made of aluminum, and its lightweight will not increase the entire weight of your boat and the difficulty of driving.
• CDI Ignition System: This outboard motor features a CDI ignition system. You can start the motor quickly and safely. It saves your time and is convenient to use.
• Energy-saving and Money-saving: This outboard adopts an international standard air intake system and compression ratio, which can effectively improve combustion efficiency and thus reduce fuel consumption. It is energy-saving and money-saving.
• High Efficiency: The outboard motor with a superior engine water cooling system can overcome huge water resistance, increase driving speed and improve its efficiency.
• 360-Degree Steering Function: This outboard has a 360-degree steering function that allows you to reverse the boat at ease without shifting gears.
• Tilt Function: This item has a tilt or lift function, and can be used for shallow water operation for your convenience.
• Independent Fin Streamline Design: When it collides with an object underwater, the design can well protect the propeller that is running at high speed.

Details

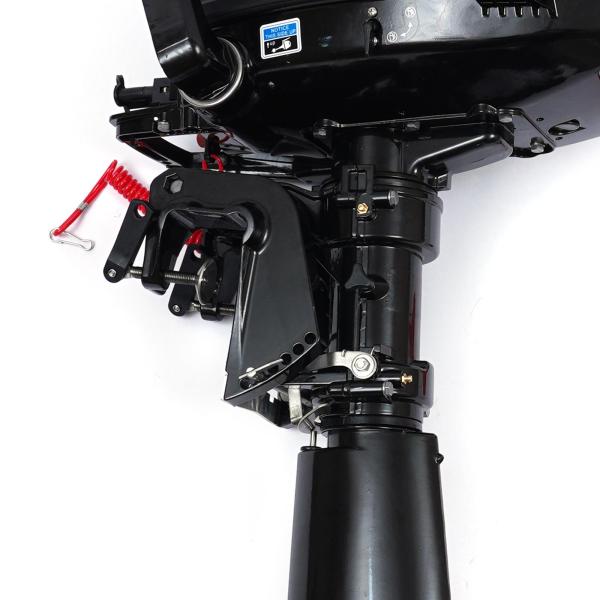

Tightened Brackets: The tightened brackets are used to secure the thruster and transoms of the boat so that the thruster will not fall from your boat.

Anti-Vortex Board: The is an anti-vortex board above the propeller. It keeps the water flow steady so that you can have a good driving experience.

Funnel: The package comes with a funnel, so you can add fuel to this motor conveniently.

Rubber Handle: The handle of this motor is made of high-quality rubber, which increases the friction and prevents your hand from slipping.

Description
The ignition system of this outboard motor has a CDI ignition system. So you can start the motor quickly and safely, which saves your time and is very convenient to use. This outboard adopts an international standard air intake system and compression ratio, which can effectively improve combustion efficiency and thus reduce fuel consumption. It also has a 360-degree steering function that allows you to reverse the boat without shifting gears. It is suitable for a variety of small watercraft, such as fishing boats, dinghies, and inflatable boats.

Application
The outboard motor is suitable for a variety of small watercraft, such as fishing boats, dinghies, and inflatable boats.

Specifications

Model: Two Stroke 6HP

Engine Position: Outboard

Displacement: 102CC

Cylinder:1

Max. Output: 4.4kw

Speed: 10-20km/h (depending on the environment, water area, and different hull loads, the speed will be different). The heavier the load, the slower the speed

Full Throttle Operating Range (rpm): 4500-5500

Idling Speed: 1000±100r/min

Thrust: 300kg-750kg

Gear Positions: F-N-R

Ignition System: CDI

Starting System: Manual Start

Trim and Tilt System: Manual Tilt

Control System: Tiller Control

Cooling Method: Water-cooling

Recommended Outboard Engine Oils: 2-Stroke Outboard Engine Oils

Recommended Fuel: # 93 Gasoline

Recommended Gear Oil: Professional Gear Oil

Gear Oil Volume: 195ml(6.6 fl.oz.)

Spark Plug: 25.0Nm(18.4 ft-lb) (2.55 kgf-m)

Engine Oil Discharge Bolt: 18.0Nm(13.3 ft-lb) (1.84 kgf-m)

Gear Ratio: 2.08 (27:13)

Mixed Rating: Fuel : Oil (50:1)

Standard Fuel Tank Capacity: 12L Within 2.5L

Bore×Stroke: 5.5*4.3cm/2.17*1.69"

Dimensions: 49*32*106cm/19.29*12.6*41.73"

Package Size: 112*62*38.5cm/44.09*24.41*15.16"

Net Weight: 20.74kg/ 45.72lbs

Gross Weight: 25.9kg/57.1lbs

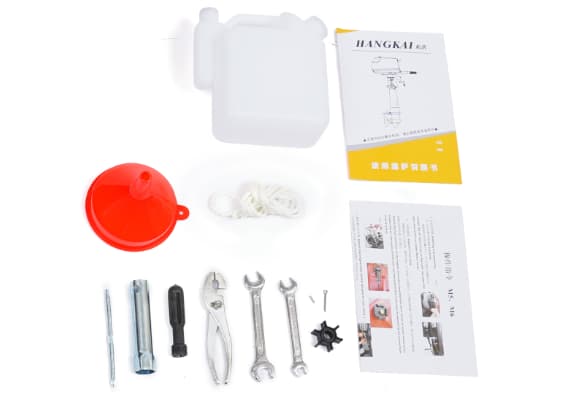

Package Included
1x Outboard Motor
1x Funnel
1x Proportioning Pot
1x Water Pump Impeller
1x Split Pin
1x Flameout Roop
1x Start Roop
1x Installation Tool Kit
1x User Manual
All Accessories for Assembly

Note:

1. Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. When changing gear oil, press the button on the carburetor to cut off. (If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.

2. Please note that this product is manual available in English, German and French, please contact customer service for more information.
