Large Fuel Tank: The internal fuel tank of this motor can load 6.34gal of gasoline. This motor is able to handle harsh waters and travel a long distance.

CDI Ignition System: The ignition system of this motor is a CDI ignition system. You can start the motor quickly and safely. It saves your time and is convenient to use.

Easy to Use: The package comes with an oil pipe, you can add oil with the pipe. And there is a handle on the cover of the motor, you can carry the motor or open it easily with this handle. These thoughtful designs make the outboard motor easy for you to use.

Independent Fin Streamline Design: When it collides with an object underwater, the design can protect the propeller that is running at high speed.

Powerful Motor: The maximum output of this motor is 18hp, the motor is able to handle harsh waters and give you a safe drive. This motor is ideal if you want to venture into harsh waters.

Ergonomic Handle: The handle of this motor is ergonomically designed, you can use it with ease. A reasonably designed handle allows you to use the motor easily and avoid potential dangers.

Easy to Use: This product comes with instructions, you can refer to it and use this motor conveniently. You can also install this motor according to the instructions.

Details

Cover Locking Handle: There is a locking handle on the cover. If you want to check the motor, then you can open the cover easily with the handle on it.

Anti-Vortex Board: The is an anti-vortex board above the propeller. It keeps the water flow steady and you have a good driving experience.

Application

This motor is suitable for rubber boats, inflatable boats, fishing boats, sailboats, yachts, etc.

Specifications

Type: Two-stroke 18hp

Gear Positions: F-N-R

Ignition System: CDI

Short Shaft

Cooling System: Water-Cooling

Control System: Tiller Control

Starting System: Manual Start

Control System: NO.92 Lead-Free Gasoline

Recommended Propeller Range: 3-9"1/4''x8"

Recommended Lubricant: 2 Stroke Lubricating Oil

Mixing Ratio: Fuel: Oil=50:1

Trim And Tilt System: Manual Tilt

Standard Fuel Tank Capacity: 24L/6.34gal

Displacement: 246cc

Gear Ratio: 2.08(27:13)

Cylinder: 2

Max .Output(Kw): 13.2

Max. Speed(r/Min): 4500-5500

Transom Plate Height: 45cm/17.72in

Bore x Stroke: 5.6*5cm/2.20x1.97in

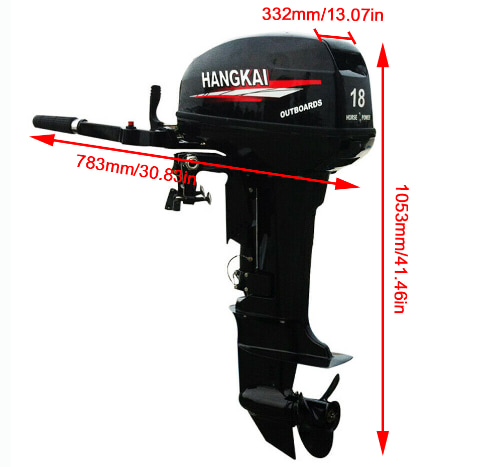

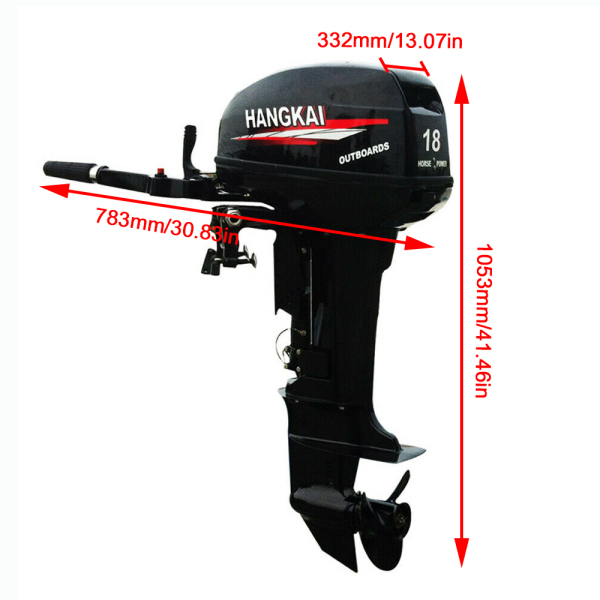

Product Size: 78.3x33.2x105.3cm/30.83x13.07x41.46in

Net Weight: 38.6kg/85.10lbs

Gross Weight: 49.5kg/109.13lbs

Package Size: 133x71x38.5cm/52.36x27.95x15.16in

Package Included

1x Outboard Motor

1x Flameout Rope

1x Oil Pipe

1x Sealing Ring

1x Tool Kit

1x Paper Pad

1x Spark Plug

1x Start Rope

1x Water Pump Impeller

1x Cotter pin

1x Fuel Tank

1x English Manual

Note:

Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. (If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.
