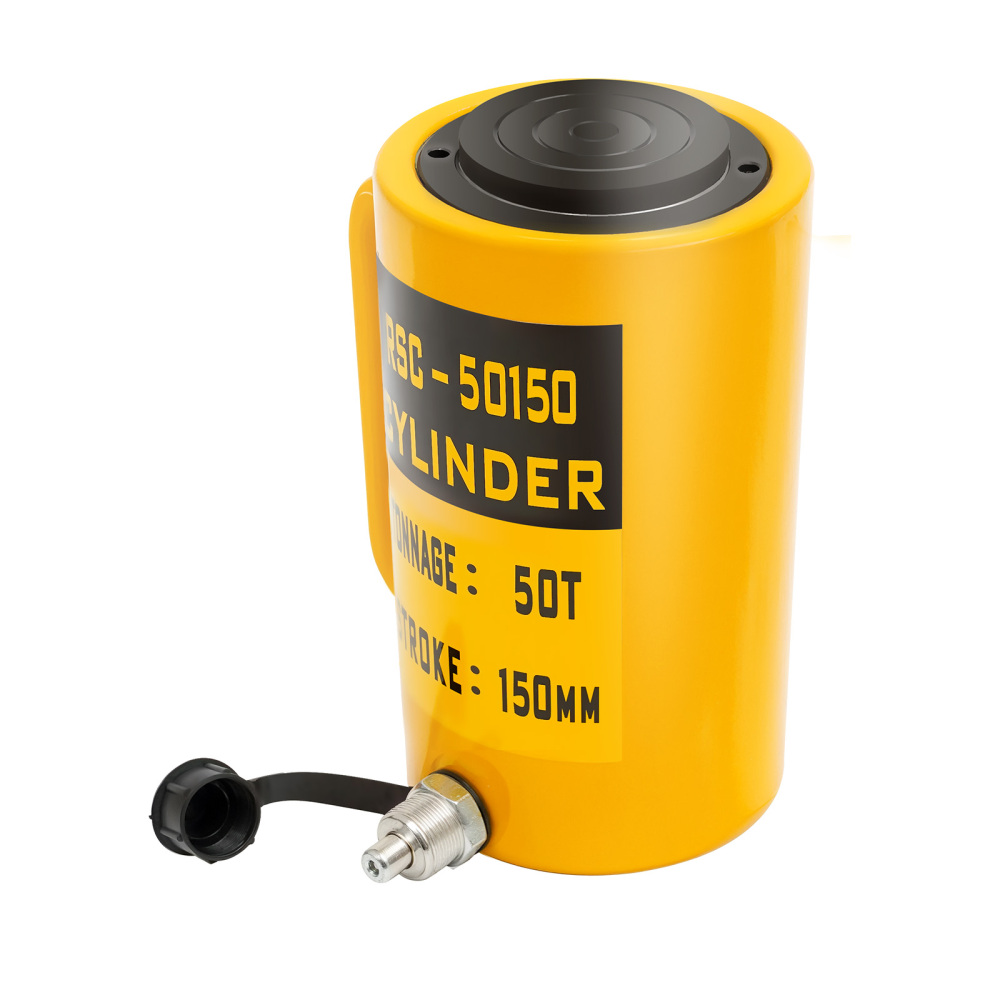

50 Tons Hydraulic Cylinder Single Acting Stroke for Small Workspace Portable Hydraulic Solid Jack Hydraulic Lifting Cylinder
- Brand: Hangkai
- Product Code: OT-ZYLLJM-4002
- Availability: In Stock

Specifications

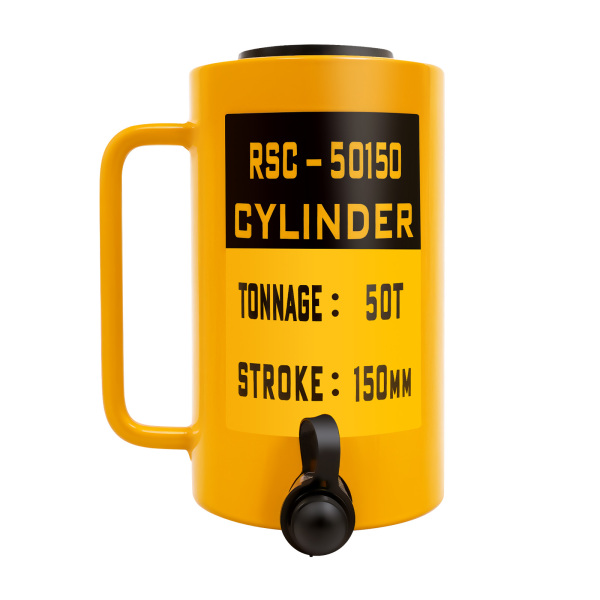

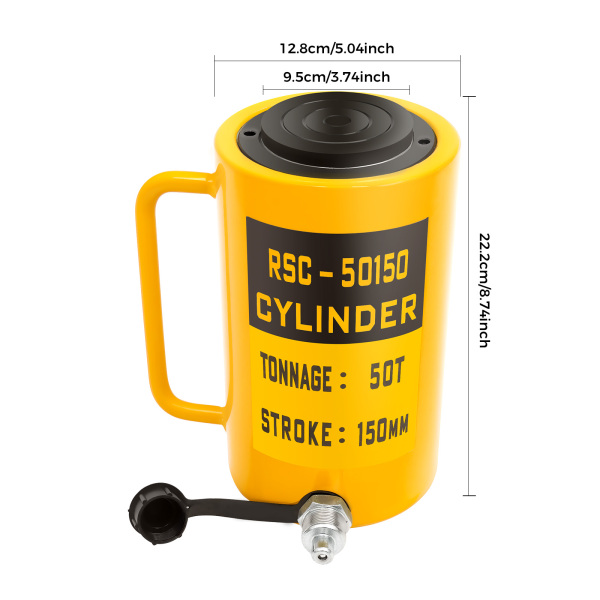

Model | RSC-50150 | Color | Yellow |

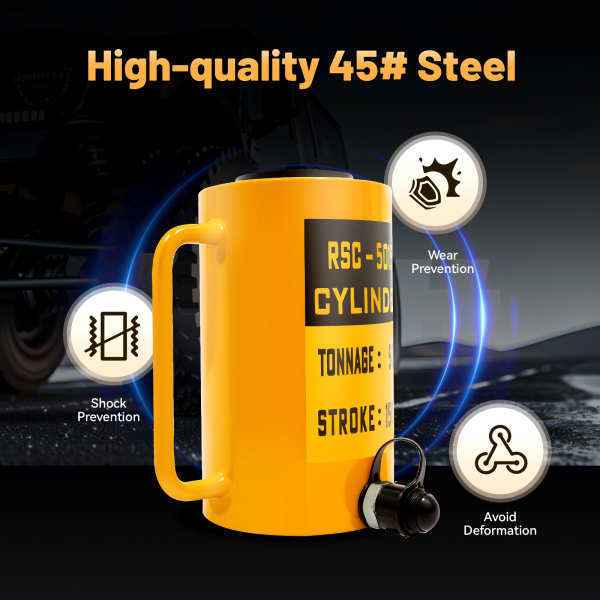

Shape | Cylinder | Material | 45# Steel |
Process | Plastic Spraying | Compatible Pumps | CP700A(Not Included) |

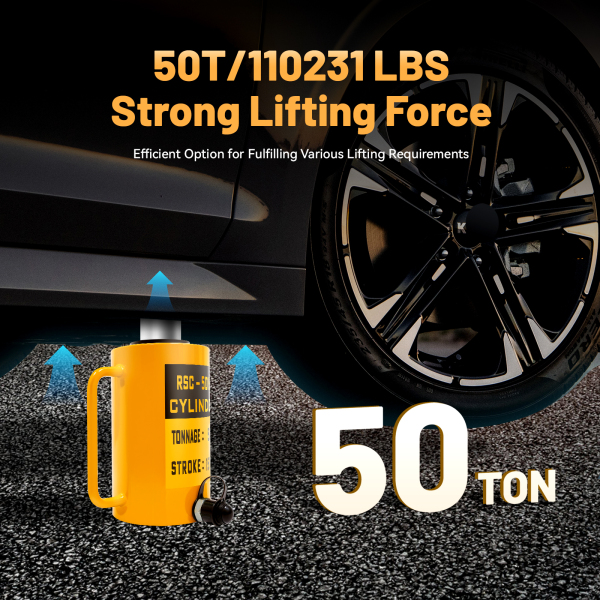

Total Tonnage | 50T/110231 lbs | Joint Size | ZG3/8" |

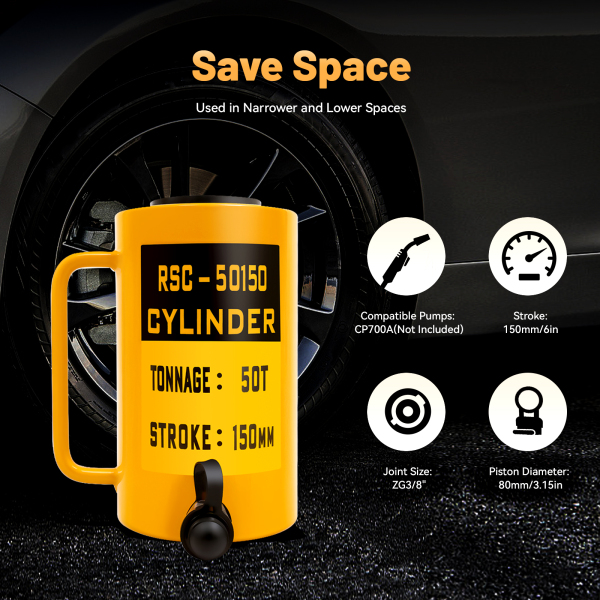

Stroke | 150mm/5.91in | Piston Diameter | 80mm/3.15in |
Cylinder Inner Diameter | 95mm/3.74in | Outer Diameter | 128mm/5.04in |
Closed Height | 222mm/8.74in | Package Size | 18*16*26.5cm/7.09*6.3*10.43in |
Gross Weight | 20kg/44lbs | Net Weight | 19kg/41.89lbs |
Product Tips


Notes
1.Please make sure you buy the right product for your lifting needs!

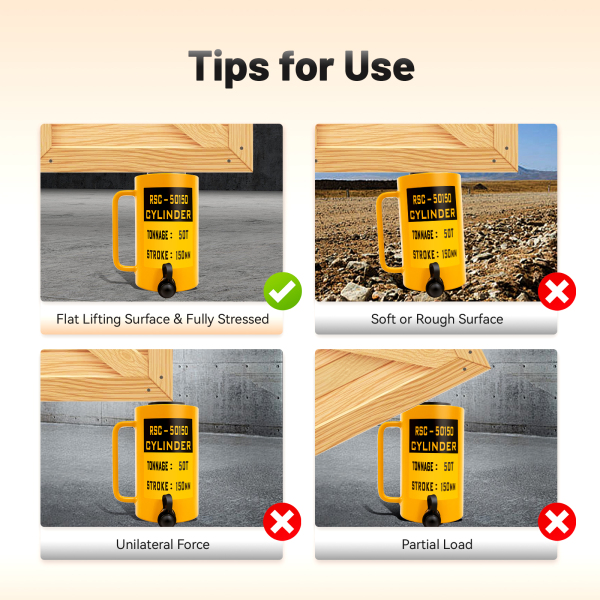

2.Please note that the contact surface between the top of the jack piston and the bottom of the cylinder must be flat and hard and not unilateral force, otherwise, it will easily cause jack damage.
3.We do not recommend it for automotive use, all cylinders need to be attached to a solid lifting surface, if there are sandy, muddy, or loose surfaces the use of thin cylinders will result in damage to the cylinder.
