Key Features
Clear and Wide View: 7-inch monitor and HD 1000TVL camera provide a clear picture and 120 ° view to accurately analyze the situation in tight spaces such as pipes and take effective solutions, which helps to improve efficiency.

Excellent Battery Life: The product has a 4500 mAh lithium battery that can provide about 5 hours of battery life, which not only avoids frequent charging but also facilitates outdoor work. The power box is equipped with a clear power indicator to allow you to grasp the remaining power in real-time to make more detailed and accurate planning.

High-quality Materials: The sewer camera is made of high-quality 304 stainless steel, and its excellent corrosion and impact resistance can adapt to a variety of harsh environments. High-quality materials and excellent sealing provide the product with an excellent waterproof grade of IP68, which enables it to be used at 65.6 feet underwater.

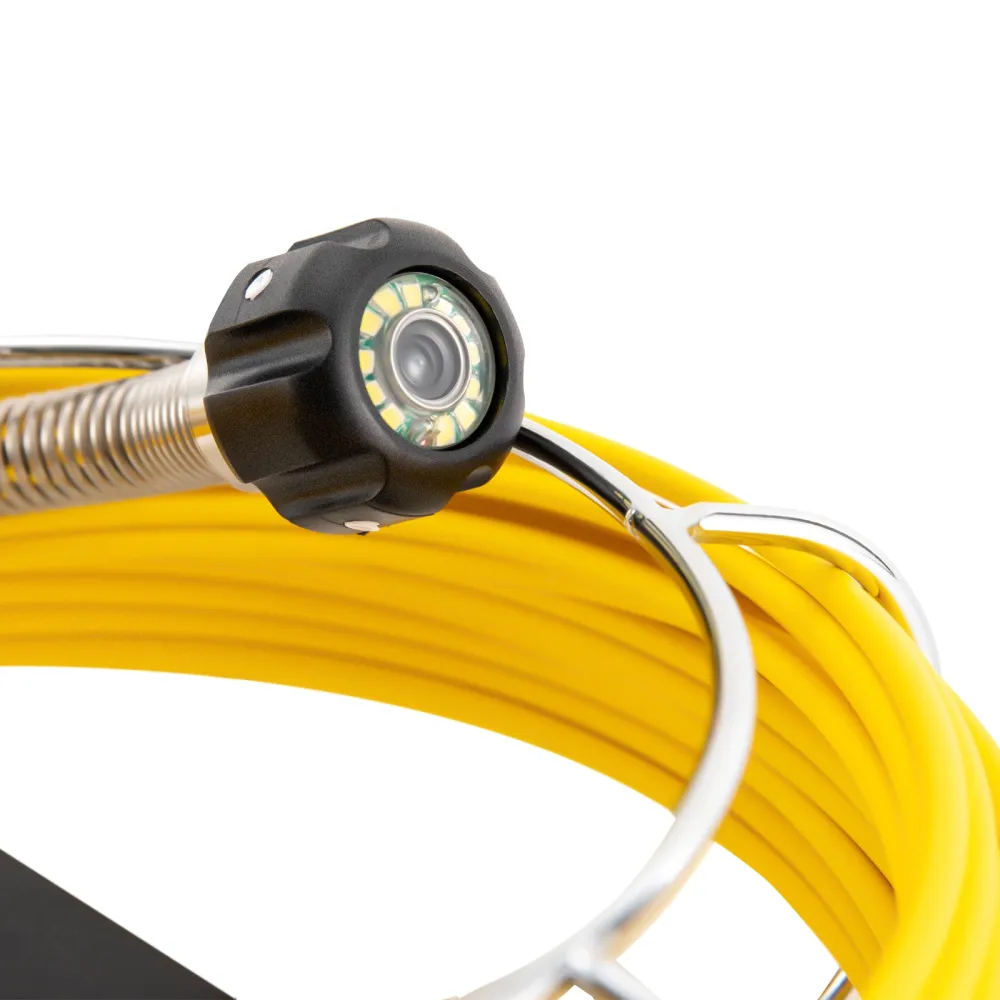

Night Vision Function: The product is equipped with adjustable 12 high-brightness LED lights so that the lens in the dark environment can still clearly capture the image of the environment, which makes it more widely used in scenes.

Excellent Waterproof Performance: High-quality stainless steel and excellent sealing provide the product with an excellent waterproof level of IP68 can avoid water and dust from entering, enhancing durability and stability.

Details

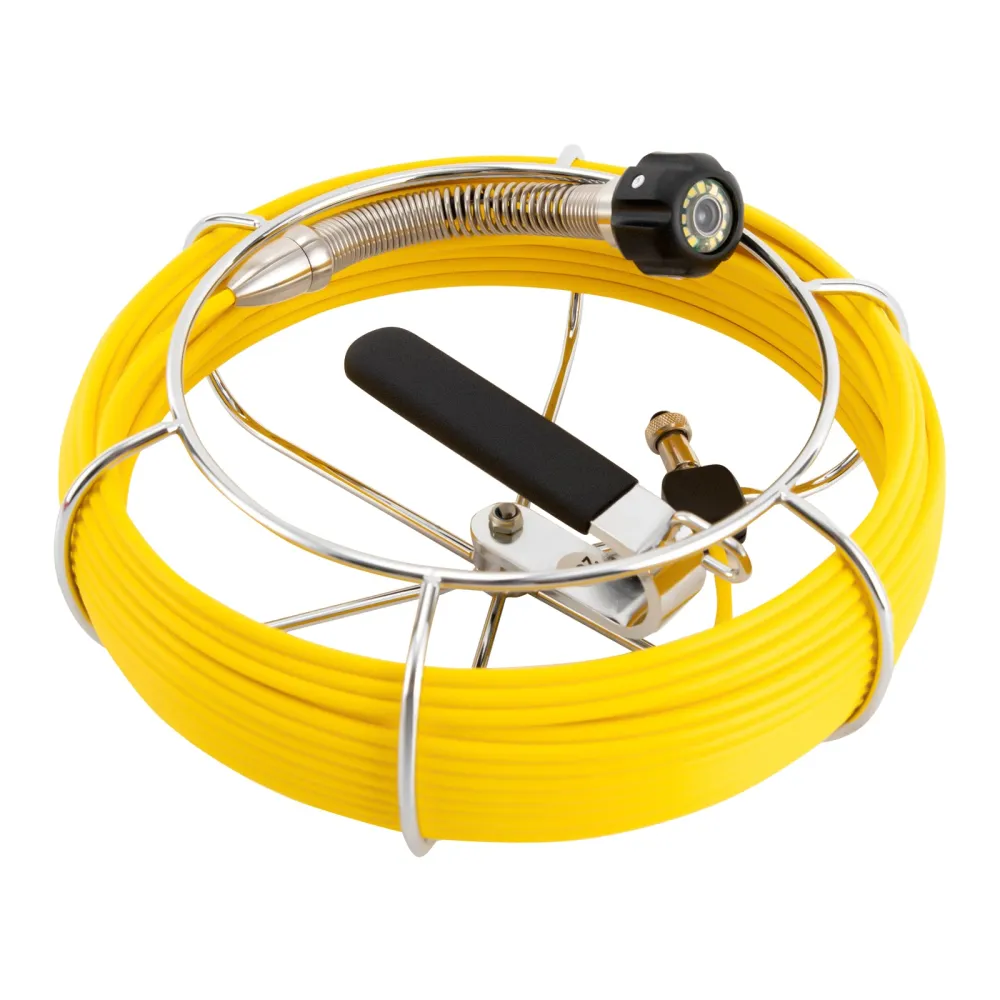

Cable Tray: The cable tray helps the organization of the cable. You may find the cable tray a surprising helper when loosening clockwise or winding the cable counterclockwise.

Storage Box: A storage box with a carrying handle secures the entire unit (battery and display) making it easier to store and carry.

Speaker: The speaker on the signal receiver allows you to hear the signal beeping from the transmitter to quickly grasp the status of the detection.

Headphones: In-ear headphones allow you to clearly hear the signal beeping while avoiding disturbing the surroundings.

Application

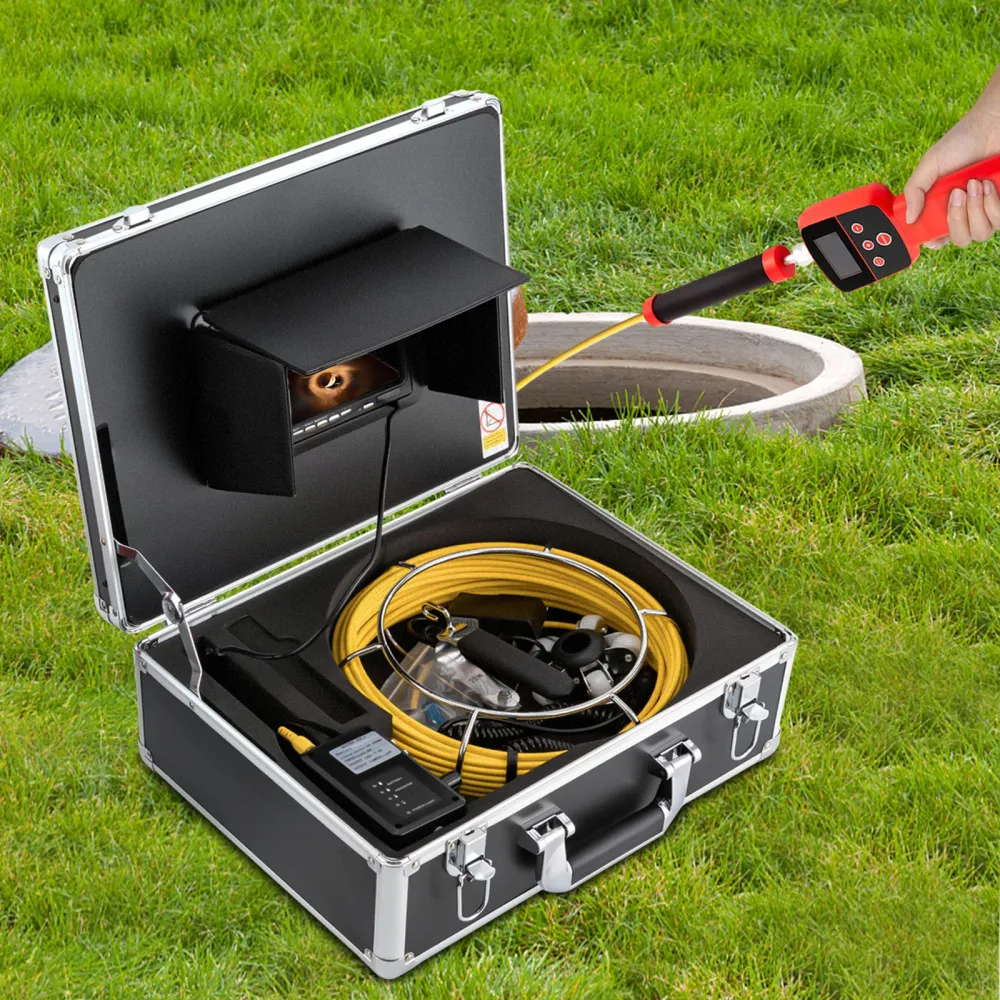

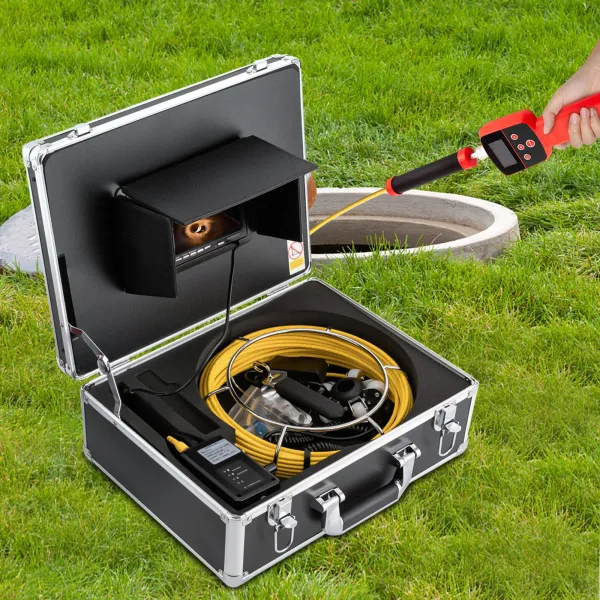

It can take photos and videos in confined spaces and is suitable for search and rescue, wilderness expeditions, scientific research, pipeline dredging, underwater cameras, waterproof miniature cameras, motor vehicle inspections, sewer pipe inspections, pipeline inspections, home appliance maintenance, archaeological discoveries, drilling industry, construction and more. It is suitable for plumbers, contractors, inspectors, engineers, municipal workers, and other professionals.

Specification
Charger Voltage: AC100-240V DC12.6V 1000MA
Plug: US Standard
Camera Shell Material: 304 Stainless Steel
Camera: HD 1000TVL
Battery Capacity: 4500mAh (Included)
Battery Voltage: 12V
Lens Material: Sapphire Glass
Camera Housing Material: 304 stainless steel
Battery Box Input Voltage: 12.6V
LED Output Voltage: 9V
Camera Output Voltage: 9V
Image Format: JPEG
Video Format: AVI, QVGA
Detector Frequency: 512HZ
Fully Charged Endurance: About 5 hours
SD Card Memory: 8G (included)
Frequency Detector Receiver Power: 6*AA Batteries(Not Included)
Battery Voltage: 12V
Power Light Status: Red Light Indicates Charging Status, Green Light Indicates Full Charge
Power Display: 25%, 50%, 75%, 100%
LED Adjustable: Yes
Visual Angle: 120 °
Camera LED: 12PCS LED
Light Color: White
Waterproof: IP68
Operating Temperature: - 20 ° C to 60 ° C/- 4 ° F to 140 ° F
Cable Length: 30m/100ft
Camera Length: 173mm/6.81in
Lens Diameter: 23mm/0.9in (can be used for pipes ≥ 25mm in diameter)
Lens Cover Diameter: 38mm/1.49in
Guide wheel Diameter: 90 mm/3.54 in
7 inch Display Size: 14.22*10.67cm/5.59*4.2in
Cable Diameter: 5mm/0.19in
Gross Weight: 6kg/13.22lbs
Net Weight: 5.5kg/12.12lbs
Package Size: 40*37*19cm/15.75*14.57*7.5in

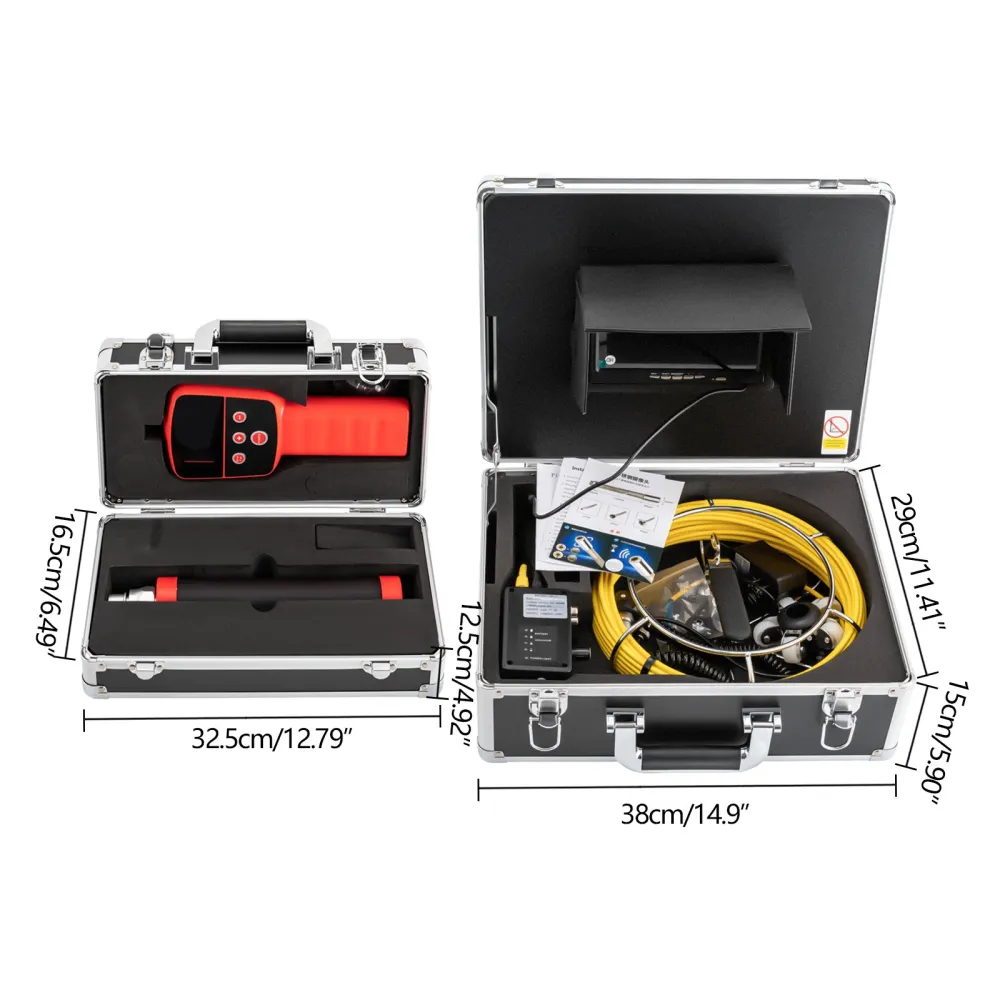

Small Case Size: 32.5*12.5*16.5cm/12.79*4.92*6.49in
Large Case Size: 38*15*29cm/14.96*5.90*11.41in

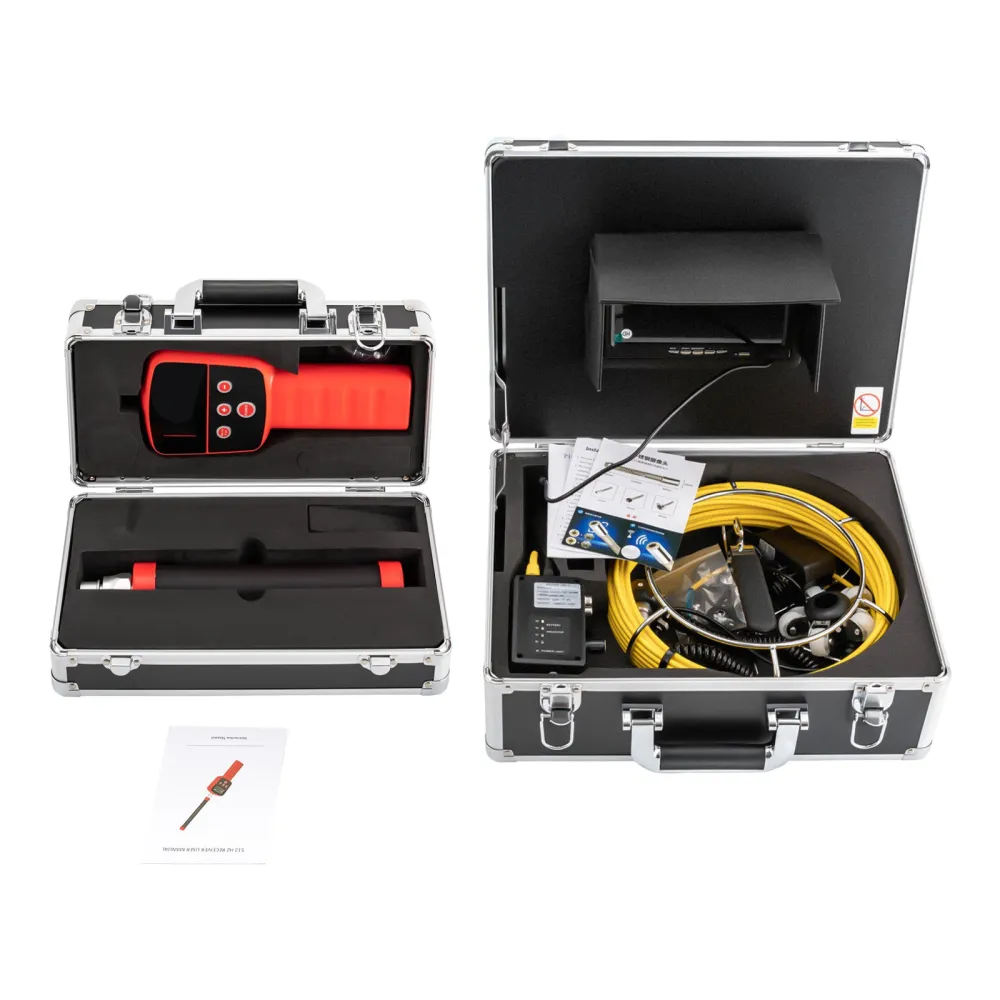

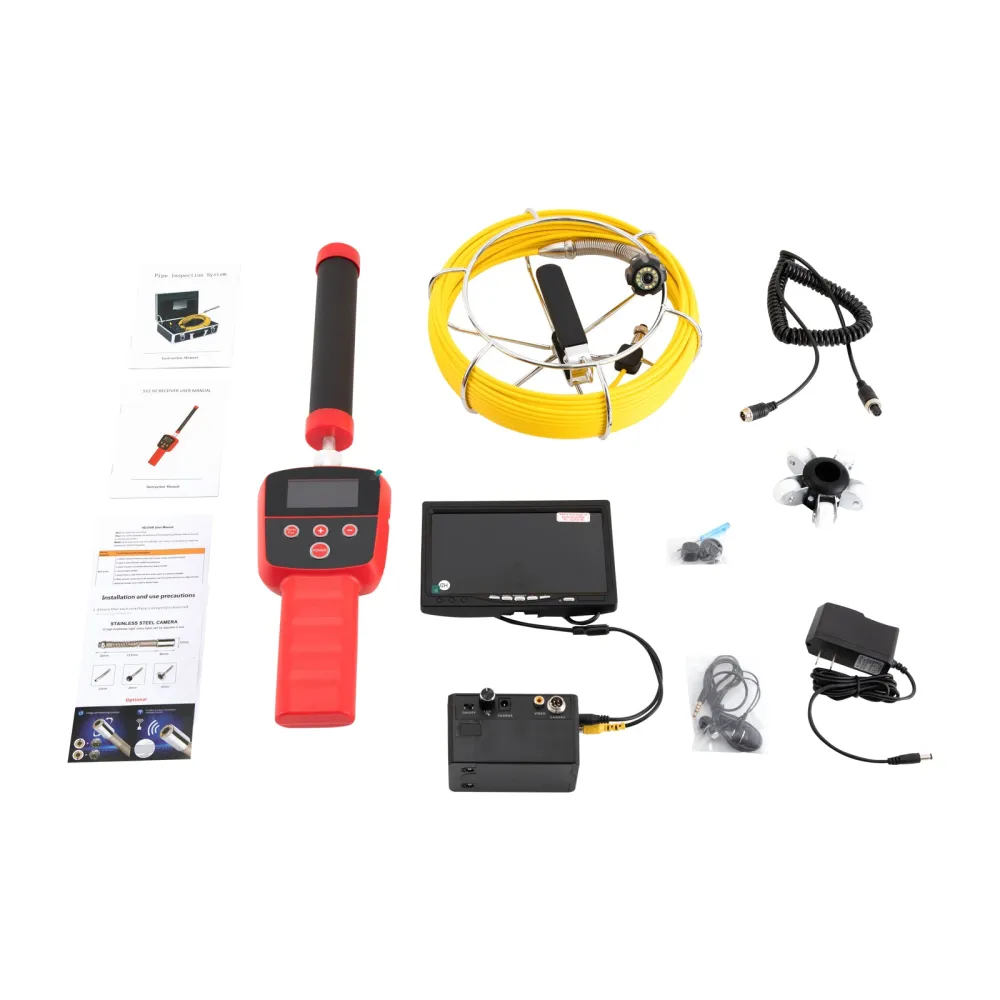

Package Included
1*Monitor
1*Camera
1*Fiberglass Cable
1*Battery Box
1*SD Card
1*Charger

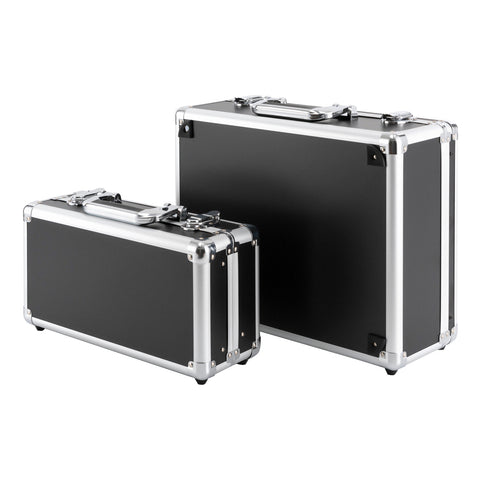

2*Cases
1*English DVR User Manual
1*English Camera User Manual
1*English Detector User Manual
1*Pipe Inspection System Instruction
1*Chinese User Manual
All Accessories Needed for Installation

Notes
1.Please read the manuals completely before use. And pay particular attention to the safety instructions included.
2.Please use the special charger in the package to charge.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
