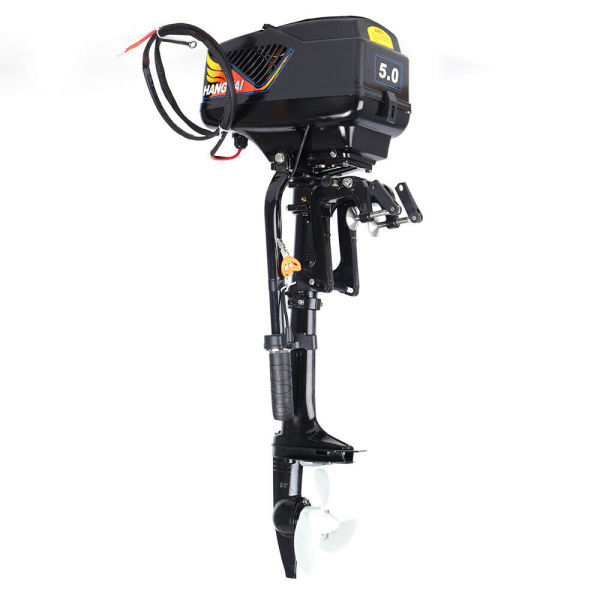

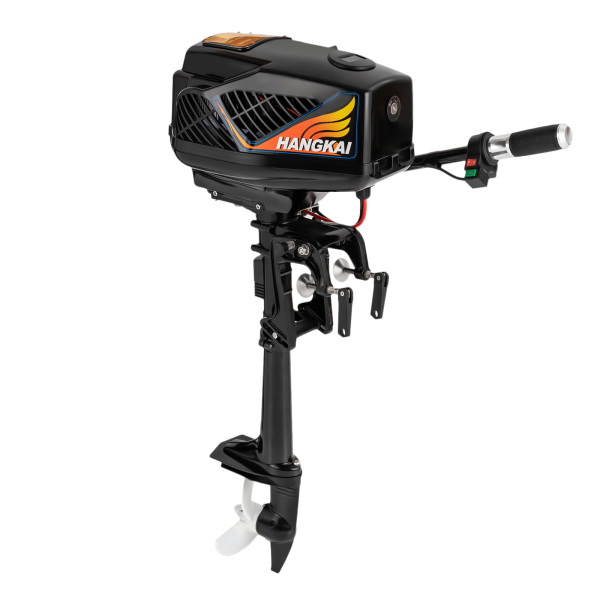

Build to Last: The exquisite painting process and aluminum alloy improve the corrosion resistance and wear resistance of the product(able to withstand fresh and saltwater environments), which makes it can serve you for a long time.

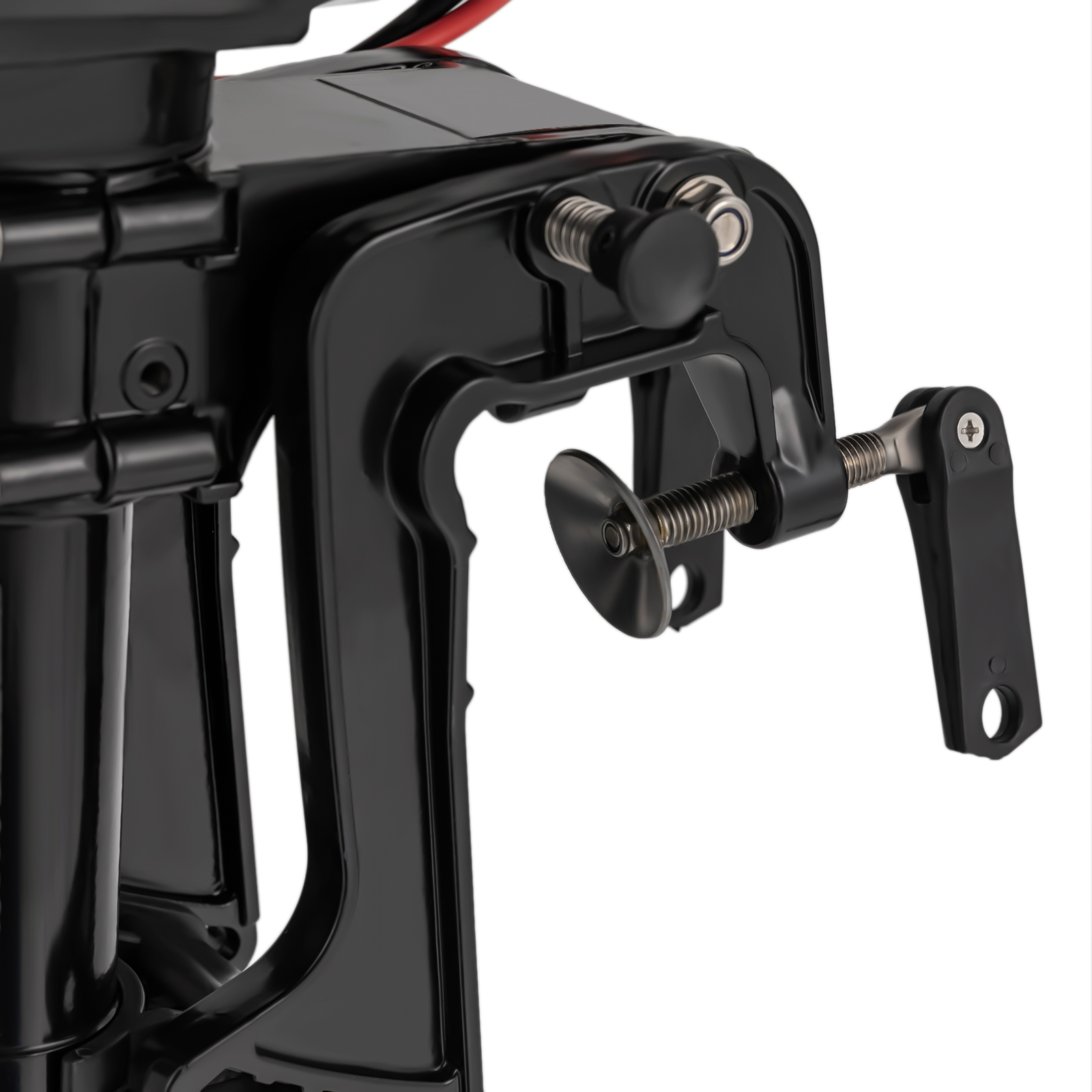

Easy to Install: The simple structure and lightweight (26.45 lbs) allows you to easily install without any tools.

Strong Power:1200 watts power, pure copper brushless motor provides strong power to it.

Environmentally Friendly: The electrically powered outboard eliminates exhaust pollution from gasoline. And the pure copper brushless motor produces less wear and noise, creating a smoother user experience for you.

Flexible Control: Having step-less speed change and constant speed function in reverse and forward gears allows you to enjoy different cruising experiences. The 180°rotatable stand and omnidirectional swivel joystick allow a more flexible operation to meet differ ent needs.



Details

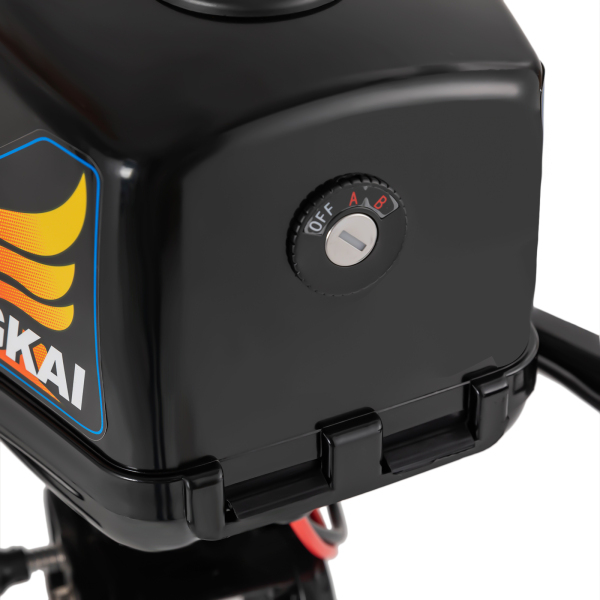

Key Switch: You can turn the key to control the opening, closing, and stopping of the outboard engine, which is very convenient.

Anti-winding Propeller: The three-blade anti-winding propeller adopts a bionic fluid dynamics design to prevent winding, reduce underwater resistance and improve propulsion efficiency.

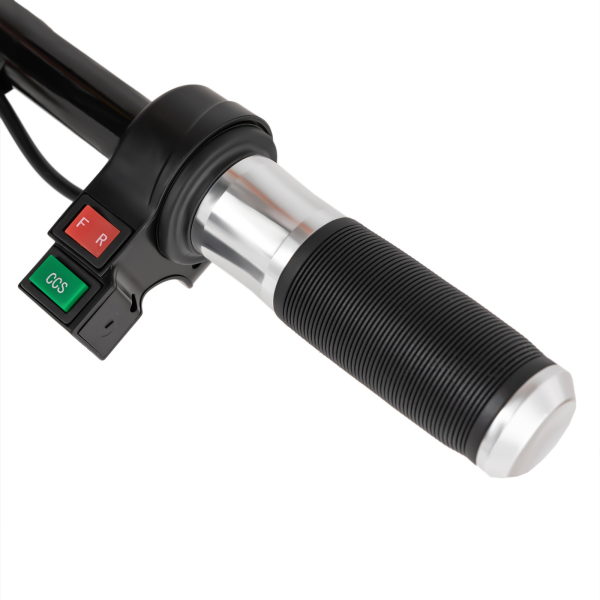

Ergonomic Handle: Its handle conforms to the ergonomic design, making it comfortable to hold. The gear buttons at the handle are designed to facilitate your operation.

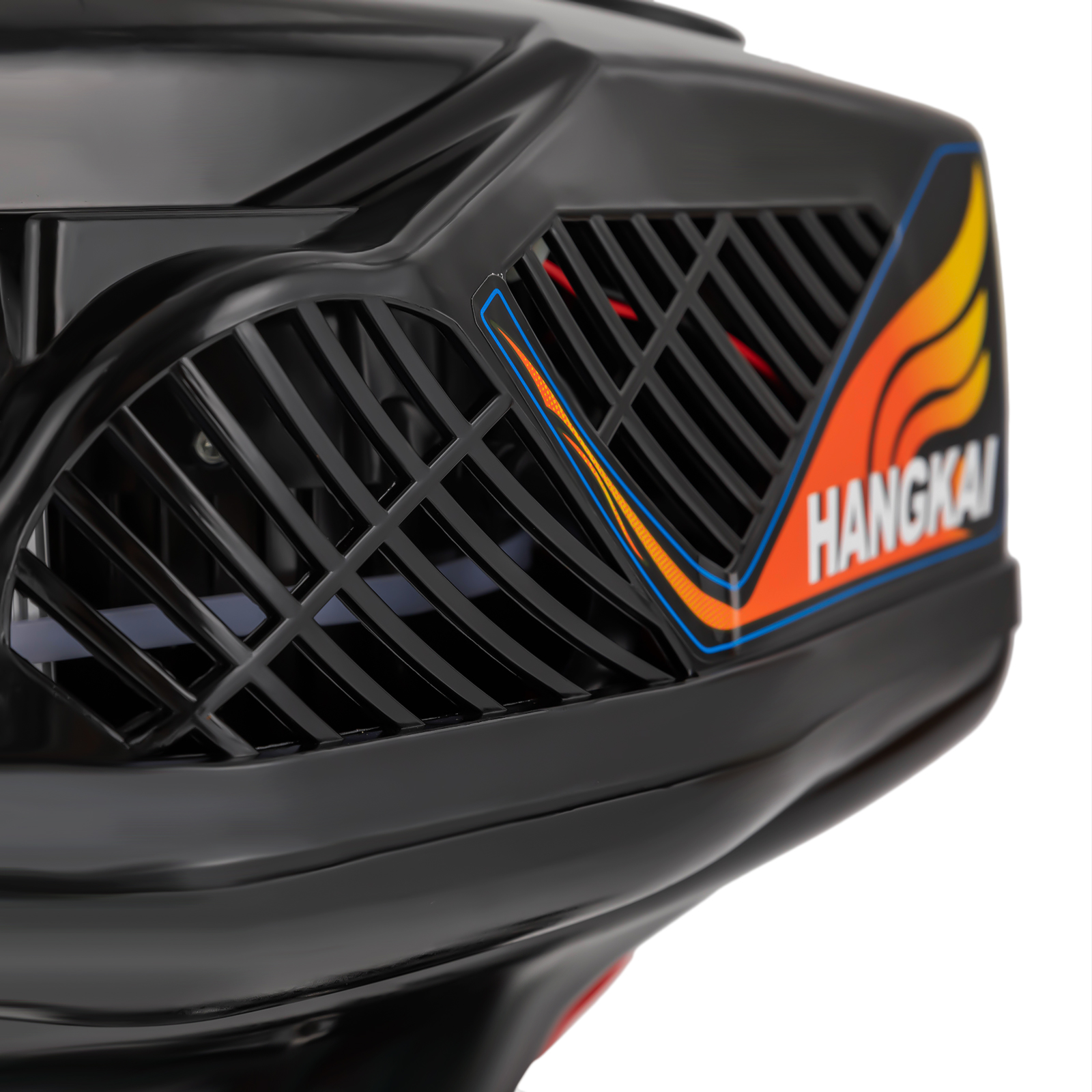

Heat Dissipation Holes: Multiple heat dissipation holes can help the motor dissipate heat and prolong its service life.

Application

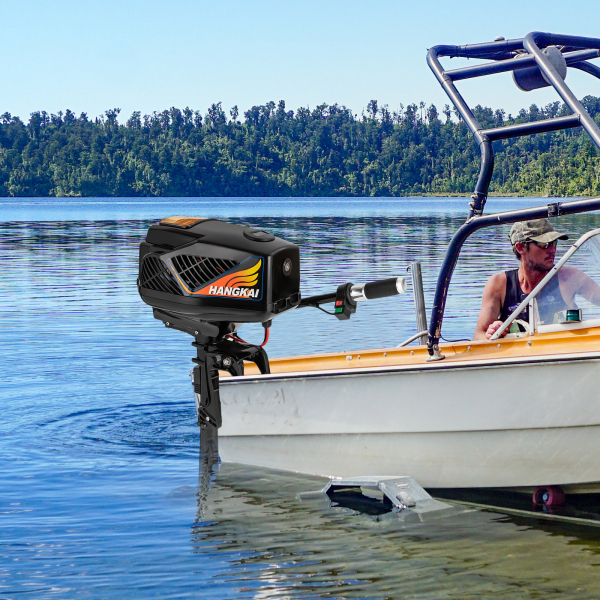

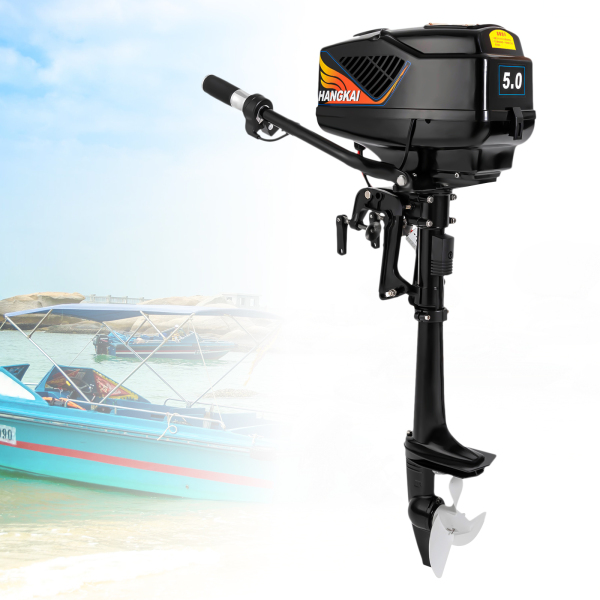

This electric outboard motor is suitable for small ships with different materials within 16.4 feet in length, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquatic, outdo or exploration, etc.


Common Faults and Troubleshooting
1. If the starting handle is found to be powered off during operation, please check whether the positive and negative poles of the battery and the whole set of power cables are connected properly.
2. Always check whether the controller screws are loose.
3. The gearbox should be replaced with gear oil for three months.

Specification

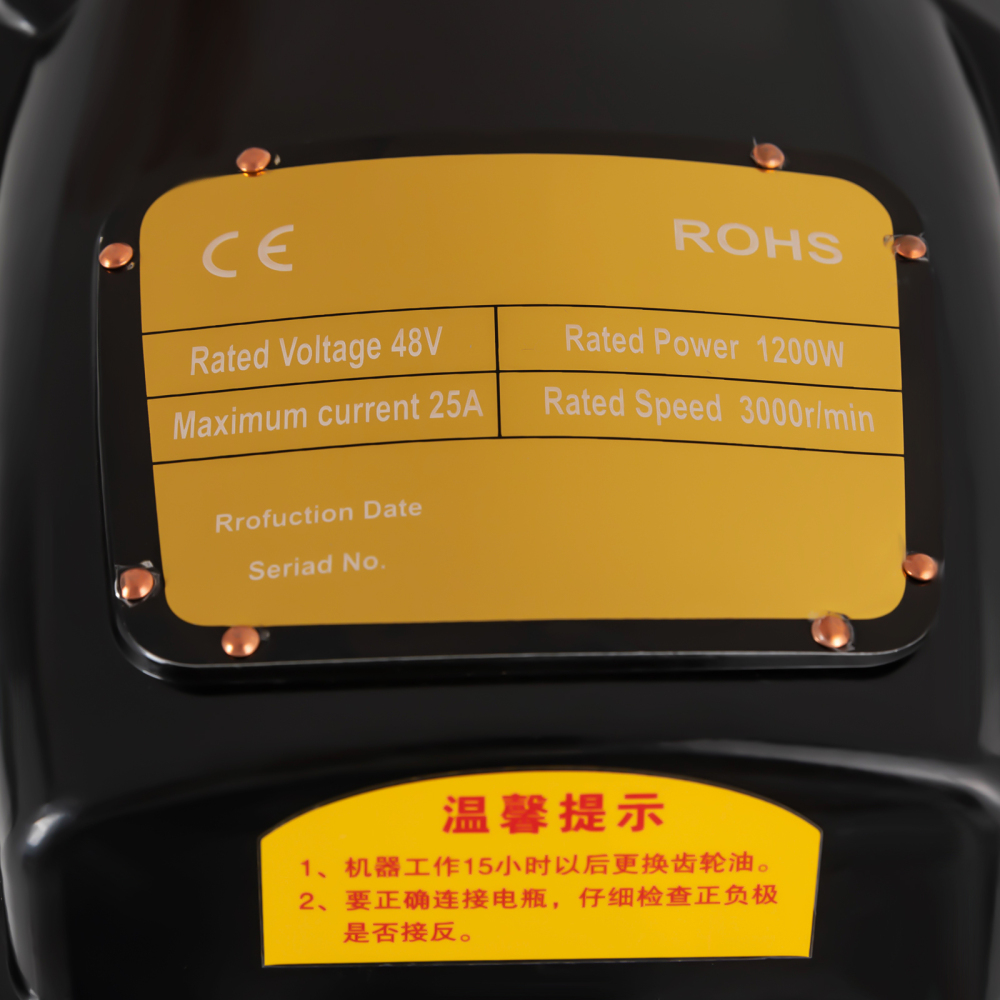

Model: DD-48V-1200W

Power: 1200W

Rated Voltage: 48V

Rated Current: 18A

Rated Speed: 3000rpm

No-load Speed: 4000 rpm

Process: Spray Painting

Gear Ratio: 2.08 (27:13)

Control System: Tiller Control

Speed: 5-8km/h  (depending on the environment, water area, and different hull loads, the speed will be different)

Max. Speed: 15km/h/9.3mph

Motor Type: Pure Copper Brushless Motor

Reverse Gear: Yes

Max. Load-bearing Capacity: 500kg/1102lbs

Recommended Battery: 1*48V/4*12V (the capacity of 40 Ah can be used for about 2 hours, the longer the battery life, the slower the speed)

Propeller Model(in): 7-1/4x5-A(The size of the propeller is 7.25 inches/18.4cm, and the propelling distance of the propeller is 5 inches/12.7cm after one revolution)

Thrust: 1500kg

Length of Suitable Ships: Less than 5m/16.4ft

Package Size: 95*42*29cm/37.4*16.53*11.41in

Product Size: 92*36.5*22cm/36.22*14.37*8.66in

Gross Weight: 14kg/30.86lbs

Net Weight: 12kg/26.45lbs

Tail Plate Height: 42cm/16.53in(Short Shaft)

Stern Plate Adapter Height: 40cm/15.74in


Package Included
1* Electric Outboard Motor
1* Propeller
1*English User Manual

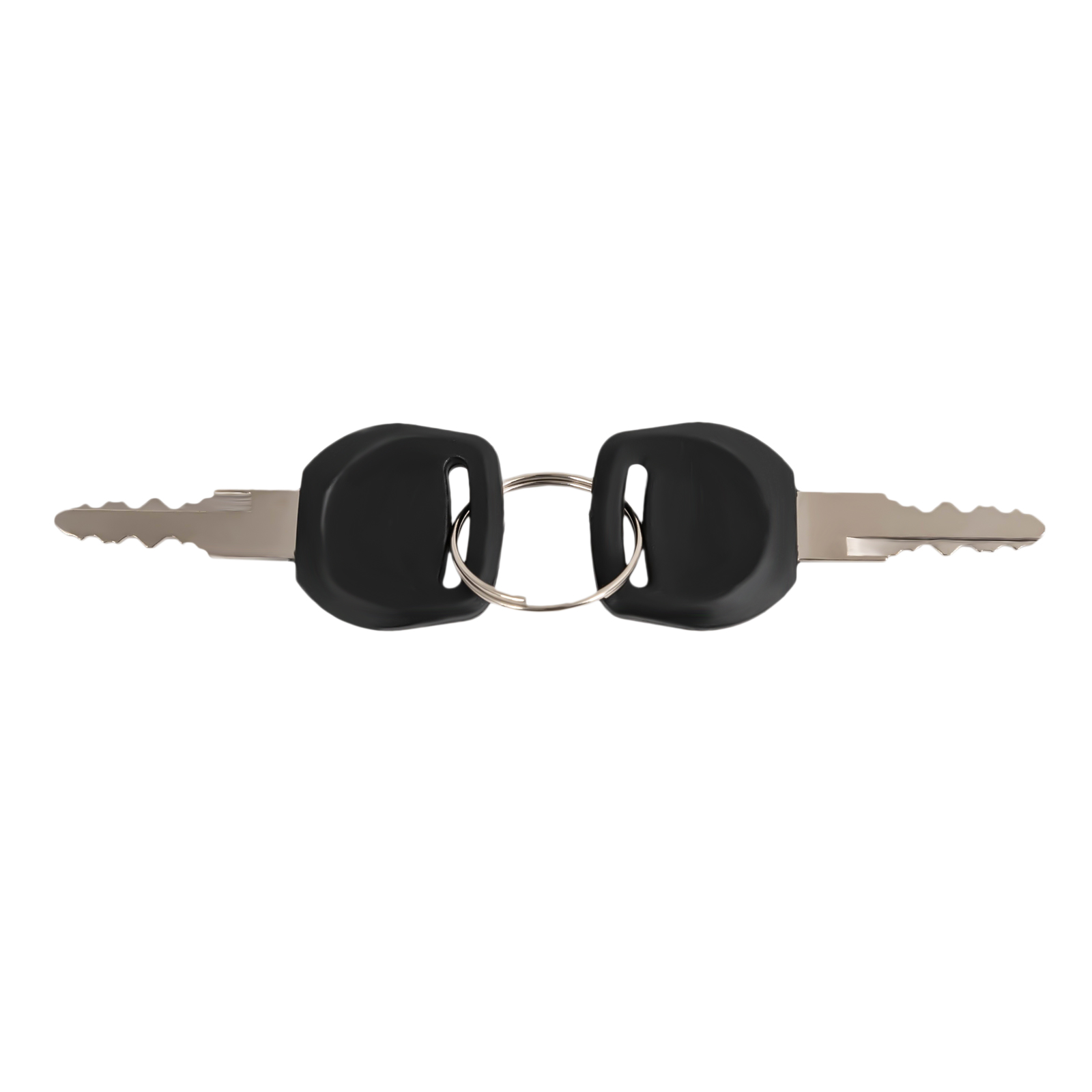

2*Keys
All Accessories Needed for Installation

Note: Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. (If you do not  know how to handle this, please contact us).  Our outboard motor doesn't with oil of gear,  please prepare it by yourself.
