• High-quality Material: High-quality aluminum is corrosion and impact resistant, which provides excellent durability and stability for the product. At the same time, the excellent heat dissipation of aluminum provides a long service life for the product.



• Programmable: The programmable feature allows you to change the battery voltage and gas pedal type to suit different models of electric vehicles.



• DC Separately Excited Motor: With smooth starting and smooth driving characteristics of DC separately excited motor, this motor controller brings you a comfortable, stable, and safe driving experience.



• Superb Craftsmanship: The superb painting process not only improves the corrosion and wear resistance of the product but also improves the appearance.



• Excellent Waterproof Performance: The excellent sealing and painted surface provide excellent waterproof performance for the product, so it can operate normally and stably even on rainy days.



• Easy to Install: The simple structure and matching parameters make it plug-and-play without modification, which is very convenient.The smooth surface and simple structure make it easy to clean.


Details
Anti-slip Surface: The anti-slip strip on the surface increases the friction with the contact object, which can effectively prevent the slip to avoid damage.

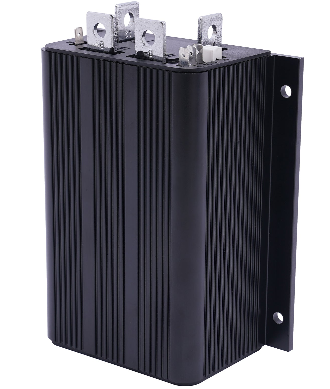

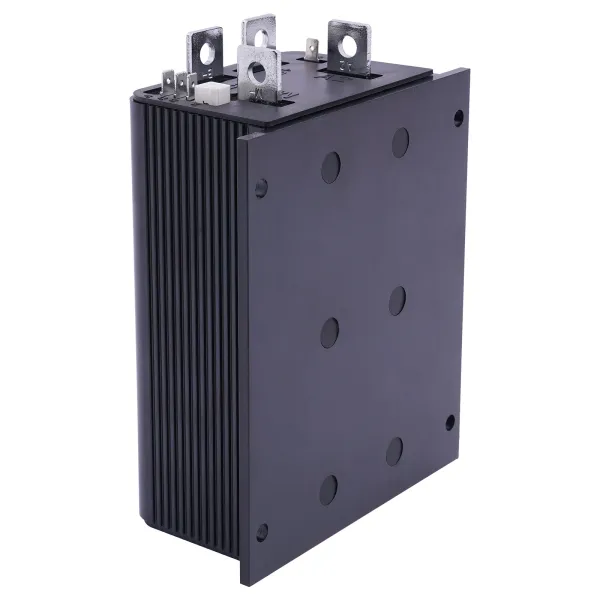

Fixing Holes: The round holes on both sides are convenient for fixing the product for use.

Application

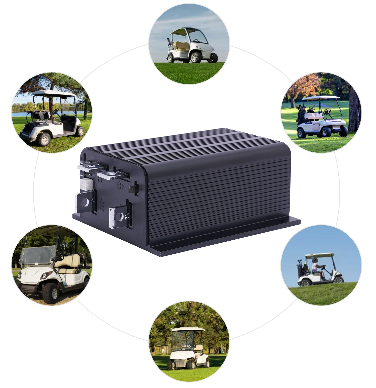

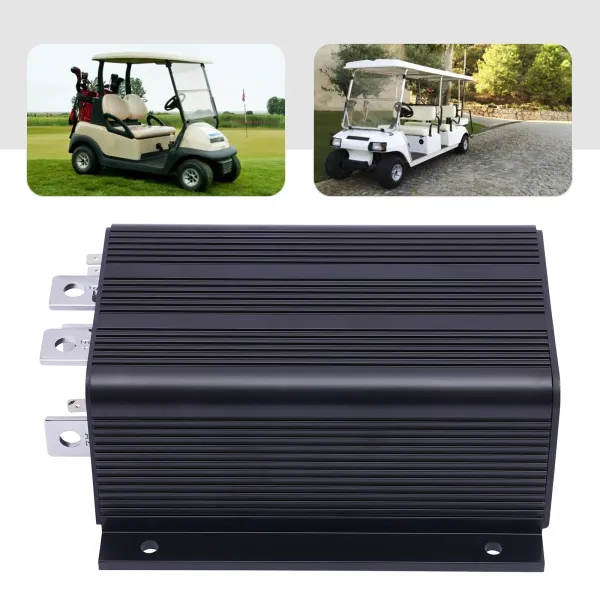

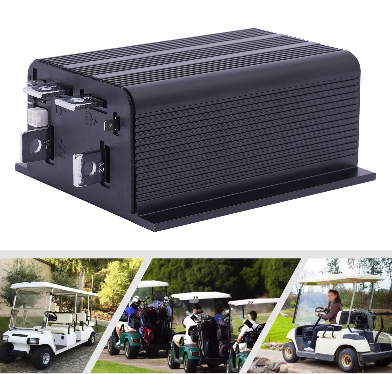

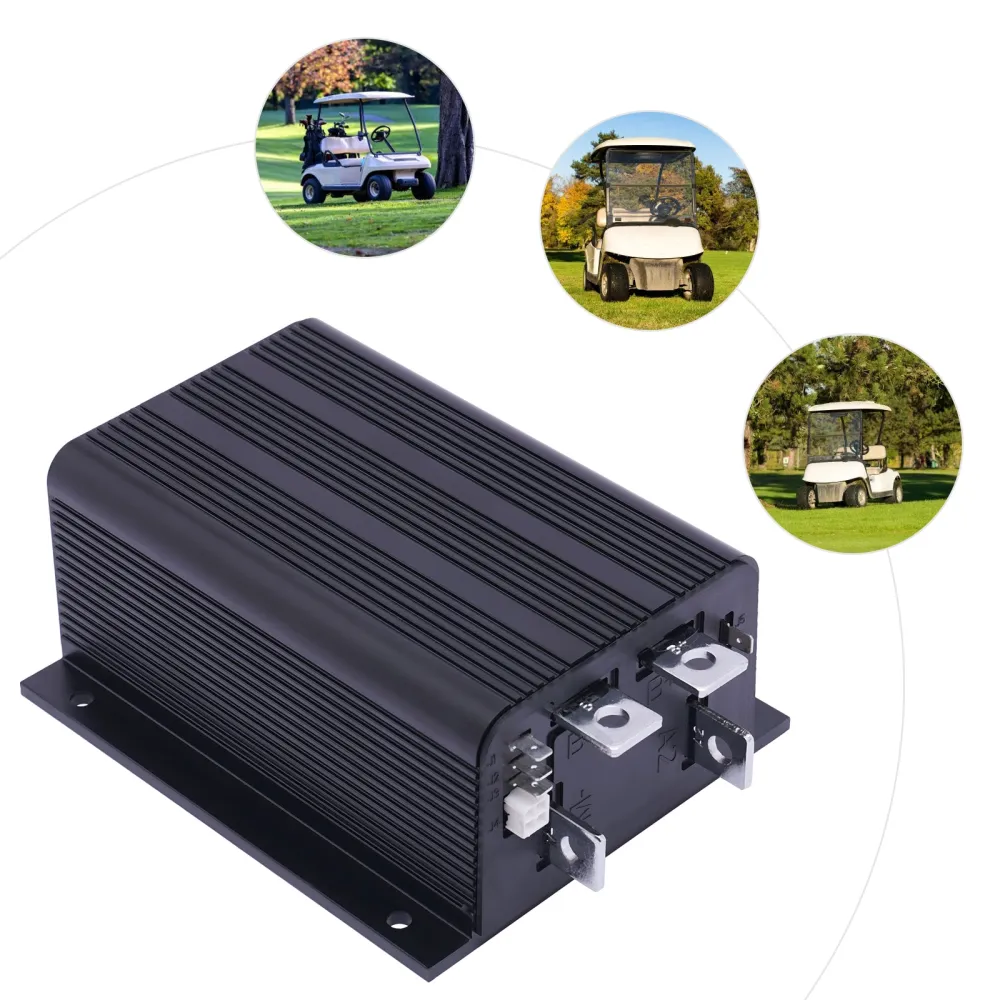

The product is suitable for mostly electric carts, golf carts, club carts, etc. and is used to replace the CURTIS 1204M-4201 controller (and the old CURTIS 12104 controller, such as 1204-004, 1204-036, etc.).

Specification

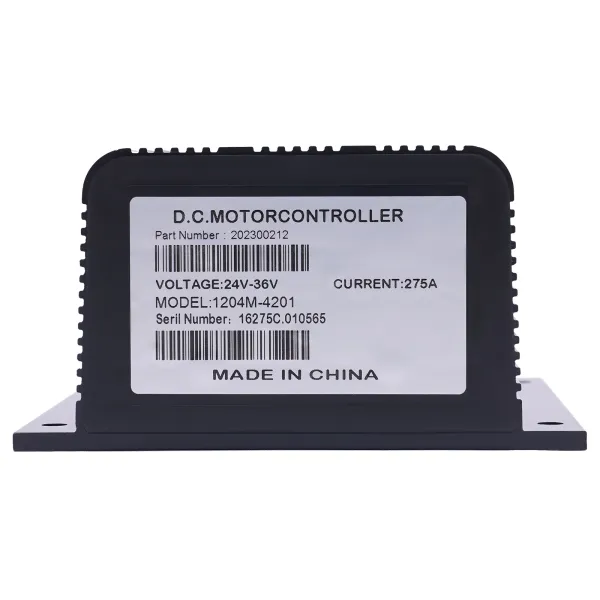

Model: 1204M-4201
Material: Aluminum
Color: Black
Process: Painting
Motor Type: DC Separately Excited Motor
Part Number: 202300212
Seril Number: 16275C.010565
Voltage: 36V(Default Setting), 24V
Throttle Type: 0-5KΩ(Default Setting), 5-0KΩ or 0-5V
Current: 275A
Operating Ambient Temperature Range: -40°C-50°C/-40℉-122℉
Storage Ambient Temperature Range: -40°C-85°C/-40℉-185℉
Style: Modern
Assembly Required: Yes
Gross Weight: 2.2kg/4.85lbs
Net Weight: 2kg/4.4lbs
Package Size: 23*13*8cm/9*5.1*3.1in

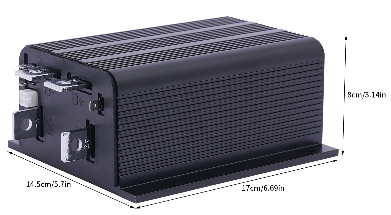

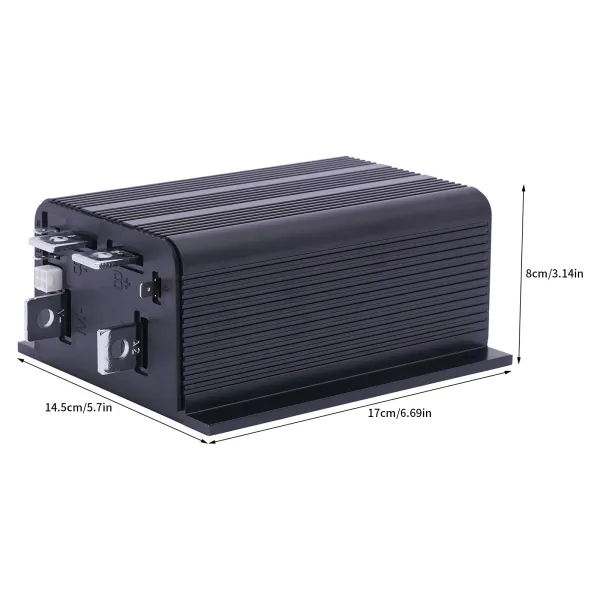

Product Size: 17*14.5*8cm/6.7*5.7*3.2in

Package Included
1*Motor Controller

Notes
1.If you need to modify any controller parameters, you need to have a CURTIS 1313-4331 handheld programmer.
2.Please make sure it matches your car before purchasing.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
