USB 3 AXIS CNC 6040 Router Engraver 1500W Milling Machine

Free Shipping for All Products with US Local Warehouse! Fast Delivery within 4-5 Business Days!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

USB 3 AXIS CNC 6040 Router Engraver 1500W Milling Machine USB Port Drilling

USB 3 AXIS CNC 6040 Router Engraver 1500W Milling Machine USB Port Drilling

(1 reviews)

Ask a question

$874.64

Brand: Hangkai
Product Code: 3-1.5KW6040A-USB-2ITEMA
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (1)
Recommer
Delivery and Return

USA STOCK! Emergency Stop Button

The new 1.5KW water-cooled VFD supports long-time operation, enhancing the machine's processing ability for materials like aluminum alloy and hardwood.

Wide Range of Applications

Suitable for various materials including wood, PMMA, MDF board, PVC, Acrylic, soft metals like aluminum, copper, and silver. Perfect for PCB, Plexiglass, Resin, Plastic, Seals, MDF, Composite, and Aluminum material.

Aluminum Alloy Frame Materials

Ideal for engraving advertising signs, PCB, nameplates, badges, seals, bronzing plates, acrylic plates, ABS resin double color plates, PVC foam boards, indentation plates, construction models, instrument panels, and wooden products.

High Torque Transmission

The mini CNC router frame is movable. Connects with a computer like other external devices (printer, scanner). High-quality accurate ball screws drive ensure precision engraving. Anti-blackflash, high precision, long life cycle.

More Choice

HANGKAI 6040 Engraving Machine has wide applications. You can explore more different types of Best Engraving Machines.

Versatile Applications

Capable of working with various metallic and non-metallic materials, making it suitable for PCB, wood, Plexiglass, PVC, Crystal Acrylic, Resin, Plastic, Seals, MDF, Composite, Aluminum, Copper, and Iron.

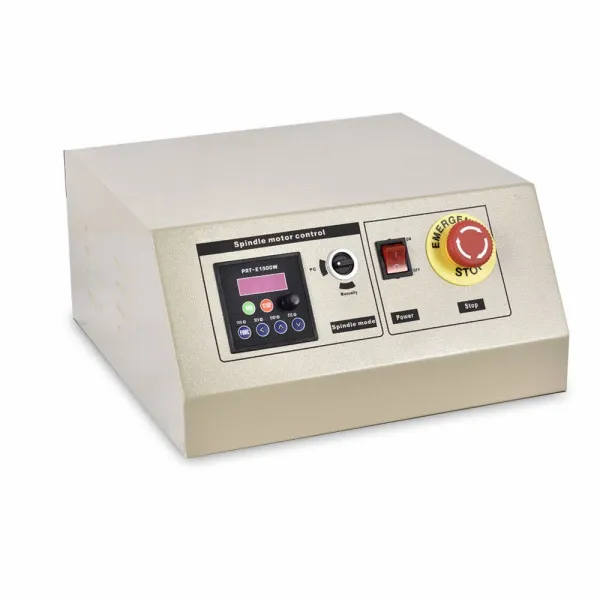

Emergency Stop Button

The 1.5KW water-cooled VFD allows for extended operation, reinforcing the machine's processing capabilities for aluminum alloy and hardwood.

Precision Engineering

Features high torque transmission with accurate ball screws drive for precise engraving. Anti-blackflash technology ensures high precision and long life cycle.

Brand New

This product is brand new in the original factory packaging.

Durable Frame Materials

Made from high-quality aluminum alloy, ideal for engraving a wide range of items including advertising signs, PCB, nameplates, badges, seals, bronzing plates, and more.

Specifications

Outside dimension: 65*158mm

VOLTS, current, power: AC110 /60Hz, 5A, 1.5KW VFD

Spindle motor: 1.5 KW water cooled

Spindle speed: 24000 rpm

Max working frequency: 60Hz

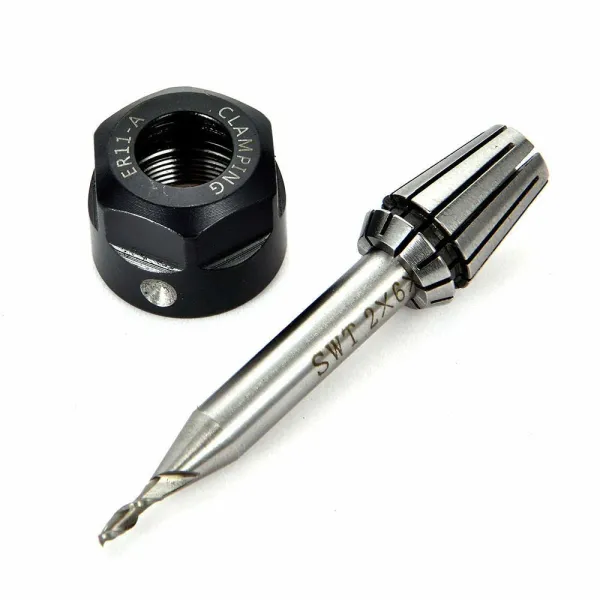

Principal axis collet: ER11collet, Standard configuration

Nut Model: ER11-A

Cooling: Water-cooling

Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM

Lubrication way: lubricated by high grease

Repeat accuracy: 0.05mm

Spindle precision: radial beat acuities 0.03mm

Carving Instructions: G code / TAB files / nc file / NCC files

Communication interface: through USB connection with computer

Maximum Idle speed: 0-1500mm/min

Working Speed: 50-1500mm / min (different material with different speed settings)

Operating Voltage: AC110V

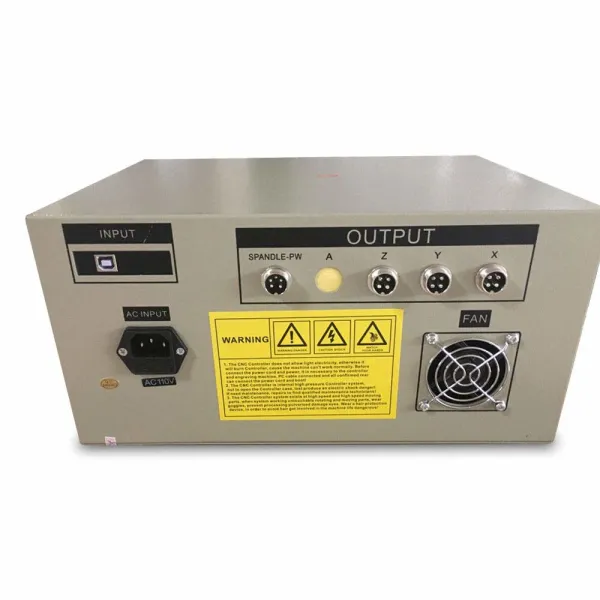

Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive

Computer connection: USB port

Command code: G code

Package Included

1* Power Milling Machine

Specifications

Outside dimension	65*158mm	VOLTS, current, power	AC110 /60Hz, 5A, 1.5KW VFD
Spindle motor	1.5 KW water cooled	Spindle speed	24000 rpm
Max working frequency	60Hz	Principal axis collet	ER11collet, Standard configuration
Nut Model	ER11-A	Cooling	Water-cooling
Speed mode	By adjusting the VFD output voltage and operating frequency from 0-24000RPM	Lubrication way	lubricated by high grease
Repeat accuracy	0.05mm	Spindle precision	radial beat acuities 0.03mm
Carving Instructions	G code / TAB files / nc file / NCC files	Communication interface	through USB connection with computer
Maximum Idle speed	0-1500mm/min	Working Speed	50-1500mm / min (different material with different speed settings)
Operating Voltage	AC110V	Control unit	Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection	USB port	Command code	G code

Product Tips

Notes

1. The spindle motor must connect with the VFD.
2. It cannot directly connect with the supply voltage (AC110V).
3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)
